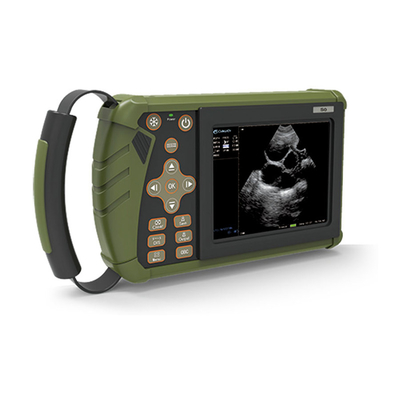

Cheap But High Quality Handheld Veterinary Purpose Ultrasound Cat Livestock Goat Sheep DW-VET6

◆Standard configuration
machine (including a lithium-ion battery)
3.5MHZ electronic convex array probe
User's Manual
Adapter
8G TF memory card

◆Optional configuration
7.5MHz high-frequency linear array probe,
6.5MHz rectal probe
7.5MHz back fat probe
5.0MHz micro convex probe
Lithium-ion battery
Car adapter
External charger
Horseshoe converter

◆Technical Parameters
Focus: three sections electronic focus, support point by point focus
Gain adjustment: main gain, near and far field adjustment can reach 255
15 levels contrast and brightness adjustment
Frame correlation: 15 adjustable
Probe: 3.5 MHz electronic convex array probe
Scan mode: convex array
Scanning depth: 57-230mm, 15 levels adjustable
Cine loop: 255 frames
Built-in battery: Rechargeable lithium-ion battery, imported 18650 standard batteries scan sustain for more than 5 working hours
Display mode: B, B + B
Gray: 256 levels
Pseudo color: 8 kinds
Image magnification: 15 levels magnification
Screen size: 5.6-inch high-definition LED screen
Measurements: distance, perimeter, area, volume, gestational age
Image processing: up / down, left / right flip, pseudo color processing, frame correlation, focus conversion
Gain regulation: Near field, far field, main gain dynamic adjustable continuously
Interfaces: Mini USB interface, TF card interface
Machine size: 240X120X45mm
Power consumption: 25W
Weight: 800g

◆Powerful System Functions
Display mode: B, B + B
HD video playback
Image storage function
Parameters optimization and pre-set
Screen protection to extend equipment life effectively
Suitable for veterinary use, can be used for diagnosis and measurement of cattle, horses, sheep and other large animals as well as cats, dogs and other pets in abdomen, obstetrics and other subjects

◆Applications measurement:
Swine: HLA, SLA
Cattle & Cow: CTD, CHL, CCRL
Dog: HD, BD, GSD, CRL
Sheep & goat: STD, SHD, SCRL
Equine: EEGD, ECD, ESD, EBD
Cat: HD, BD

Goat & Sheep purpose handheld veterinary ultrasound cheap but high quality DW-VET6
◆Excellent Human-Computer Interaction
Comfortable hand-held imaging, ultra-light weight, easy to carry
High-resolution LED display to improve diagnostic accuracy
USB, TF card ports are for convenient and fast image storage and playback
Integrated long life lithium battery ensure long power outages check, AC and DC dual-use
Real-time dynamic beam apodization

◆Battery
Built-in battery: Rechargeable lithium-ion battery, imported 18650 standard batteries scan sustain for more than 5 working hours.
