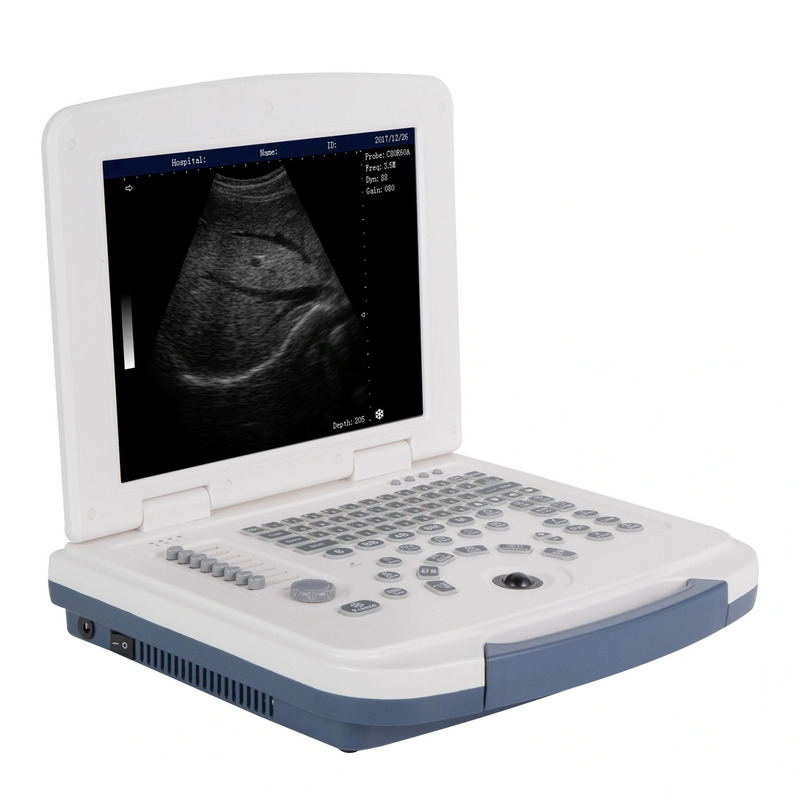

Hospital B/W Ultrasound Machine Laptop Portable Ultrasound Scanner

1.Application:
Abdominal, urology, obstetrics and gynecology, pediatrics / neonatology, superficial structure / small organs, musculoskeletal, heart and so on.

2. product configuration:

main unit:
Main unit , power adapter PH80, 3 × 0.75MM power cord
12.1 inch medical LED display, 10400mA built-in rechargeable lithium battery (4-8H)
Built in 8G memory card to save more than 4000 images, supporting U disk storage .
Multilingual ultrasonic system: Chinese/ English/ Russian/ Spanish/ French/ Portuguese
Net weight: 4.7KG Gross Weight: 9.5KG
Backlit silicone keyboard
Manual
Warranty Card
Certificate
Packaging plastic bags
Desiccant
Paper box

Optional transducers:

3.5MHz Convex Probe: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5.0MHz
7.5MHz Linear probe: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
6.5MHz Transvaginal probe: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
5.0MHz Micro-Convex probe: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
7.5MHz Rectal Probe: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz

3. Advance technology

Powerful image post-processing functions, the first-class digital imaging technology
DBF all digital beam forming
DRF real-time dynamic reception of focus with point-by-point
DRA real-time dynamic sound velocity change
THI tissue harmonic imaging
RDA real-time dynamic aperture imaging
DFS numerical control dynamic frequency scanning
RDF real-time dynamic filtering

4. Specifications

Main unit system:
80 element array
Digital beamforming
Real-time dynamic aperture imaging
Real-time dynamic sound velocity trace
Real-time dynamic launch point by point focus
Real-time dynamic reception point-by-point focusing
8-segment digital TGC
Tissue harmonic imaging unit
Dynamic digital filtering
A stable and concise operating platform
Two puncture guide lines, adjustable angles and positions
The multiple rate shows that the diagnosis is more accurate
Intelligent menu, human-computer dialogue is easy and quick
Large volume movie playback, image automatic circulation demonstration
Abundant measurement functions: distance, circumference, area, volume, obstetric table, heart software package, etc.
Angle measurement, you can intuitively see the angle and length of the angle
Histogram function
Depth measurement function
16 kinds of obstetric measurement packages and has fetal growth curve function
In any imaging mode, the data can be measured in real time
Automatic memory and generative function of obstetric data
Character display: date, clock, name, gender, age, doctor, hospital, annotation (full screen character editing)
One key out of patient information entry function
Through the trackball cursor to select the function package and measurement methods
Image enhancement, row correlation, frame correlation, point correlation, linear interpolation and other image processing technology

Probe interface:
Standard configuration: 1 probe ports
Optional docking station for 2 probe ports

5.Measurement software
General measurement package
GYN&OB measurement package
( OB-1 / OB-2)
Andrology measurement package
Cardiac measurement package

6.Functional characteristics
Scanning mode: convex matrix / linear array / micro convex
Display mode: B, B + B, 4B, B + M, M.
Measurement: distance, circumference, area, volume, heart rate, pregnancy week (BP, GS, CRL, HC, AC, EDD, AFI) and the expected date of birth, fetal weight display, etc.,
Electronic focus: four electronic focus
Body mark: ≥ 96 kinds
Image mirroring: up and down, left and right, black and white , in any mode can be changed and operated.
Images can be 0 °, 90 °, 180 °, 270 °, 360 ° rotation
Character display: date, time, name, sex, age, doctor, hospital, comment (full screen character editing) (can be mixed with letters, numbers, punctuation, arrows)
Cine loop: ≥ 512 frames, can be continuous to play or view by line.
Puncture guidance function
Frame correlation: 0-3 , four kinds, with independent keys, can be adjustable, change by trackball cursor;l
Line correlation: 6 kinds , with independent buttons, can be adjustable, recycled visual adjustment, change the trackball cursor.
Gamma correction: 0-7 , 8 kinds , with independent buttons, can be adjustable, recycled visual adjustment, change the trackball cursor.
Edge enhancement: 0-3, 4 kinds of adjustment, with independent keys, can be adjustable visually, can be adjusted cyclically,change by trackball cursor;
Scanning range: 0-3, 4 kinds, with independent keys, adjustable, can be adjusted cyclically, you can also change by the trackball cursor;
Interface: RS-232 , VGA , VIDEO , 2 USB ports, DICOM

8. Selling features

1. Thin and light notebook design(33*28.9*7cm 4.7kg), docking station is optional for 2 probe ports.
2. Display: 12.1 inch LED medical display (8 kinds of pseudo color)
3. Built-in 8800MA lithium battery(4-8 hours extra long standby time)
4. Permanent storage: built in 8G memory(more than 4000 photos)supporting USB disk storage
5. Smart operation ( can be selected through the trackball cursor directly)
6. Multilingual system(Chinese, English, French, Spanish, Portuguese, Russian)
7. Powerful image processing technology(DBF, DRF,DRA,THI ,RDA,DFS,RDF)
8. All probes are optional(convex, linear, transvaginal,micro-convex, rectal probe)
9. Rich clinical measurement package(B Measurement, GYN,Thyroid,URO,Kidney,Cardiac, OB1,OB2 measurement). Especially, Obstetricshas,16 kinds measurement packages and has fetal growth curve function.
10. Free workstation software
